Hardware Update Logs

[简体中文]

Wireless Tracker

V1.0

• First release

• 2023-6-30 public sale

• Schematic diagram of Tracker 1.0

• Datasheet of Tracker 1.0

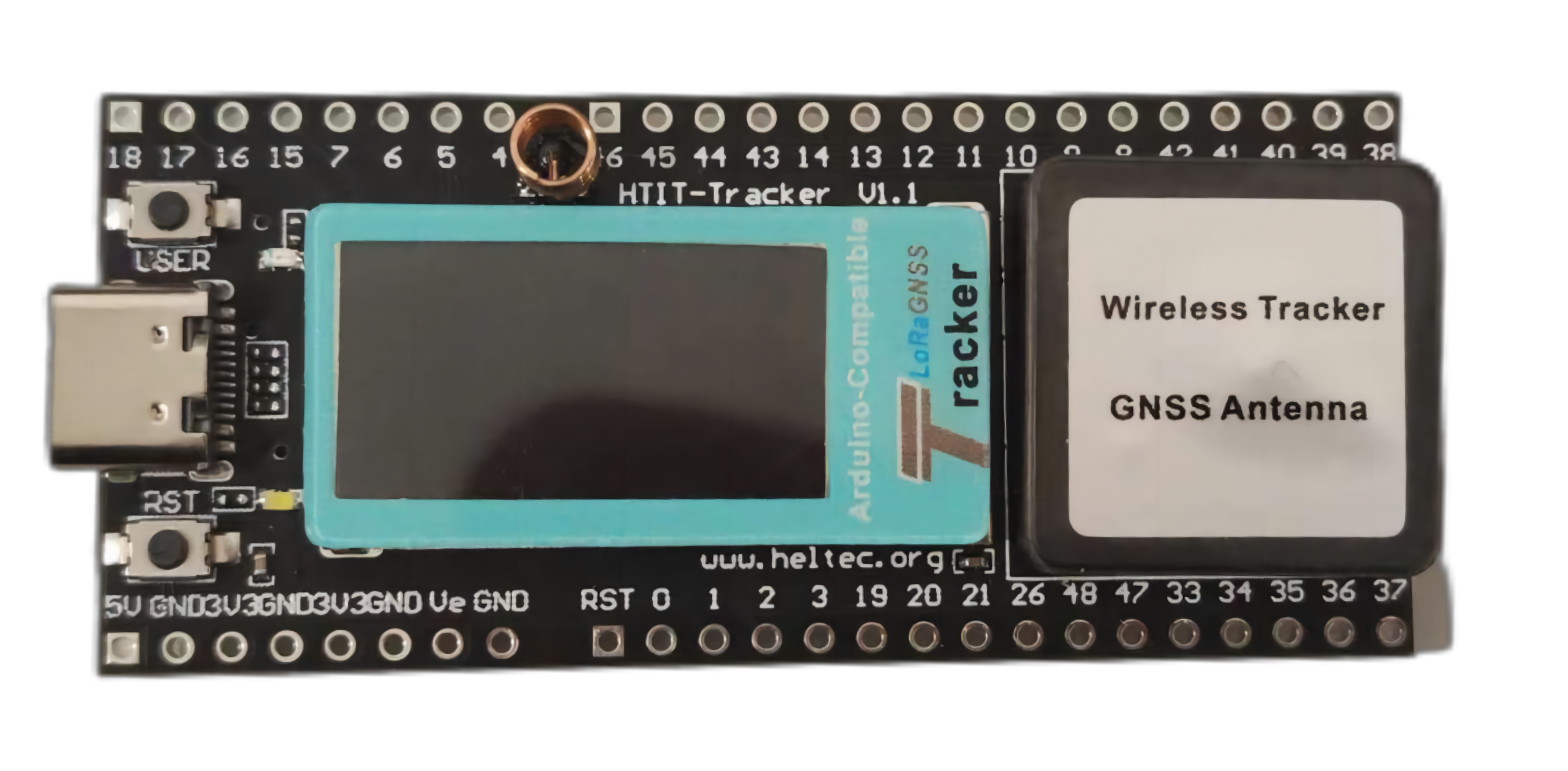

V1.1

• Fixed an issue where the GNSS module loses power when LoRa starts, enhance low power features.

• Added an additional LDO as UC6580 GNSS power source,

• The GNSS Ctrl pin was removed, set GPIO 3 HIGH to enable GNSS power source.

• Schematic diagram of Tracker 1.1

• Datasheet of Tracker 1.1
