快速入门

[English]

This topic describes how to configure HT-M7603 quickly.

Enter configuration page

  1. Power on, find the WiFi named “HT_M7603_xxxx”, connect to this WiFi, the password is “heltec.org”.

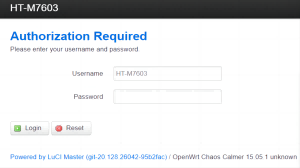

  2. Visit “192.168.8.1” via the browser, the user name “HT-M7603” and password “heltec.org”.

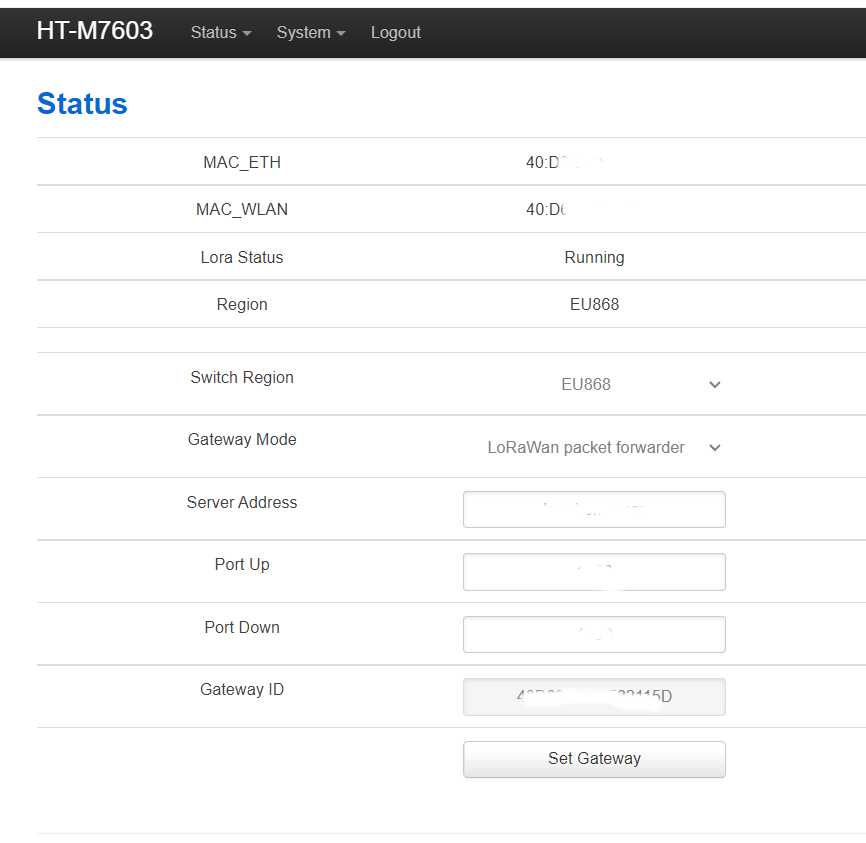

Main Settings

  • Switch Region: Choose the frequency bands and channels you need.

  • Gateway Mode: Gateway protocol mode, the default is LoRaWAN; To use MQTT, refer to this link-MQTT Enble

  • Server address and port.

Click Set Gateway when the configuration is complete.

连接到网络

You can connect via Ethernet or WiFi:

  • Via Ethernet: insert the cable directly into the interface, after a successful connection, the device LED will change from blue to green.

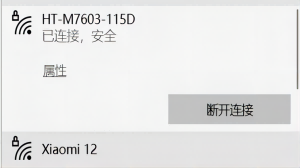

  • Via WiFi: Click the “Status “option at the top left, click “WiFi”. Select the WiFi you want to connect to in “WIFI list”, enter password of this WiFi, click “connect”. It usually takes 10-30 seconds for the HT-M7603 to connect to the WiFi, and the device LED.



常见问题与解决方法

  • 问题：WiFi配置完成后，配置页面没由响应。

    解决方法：WiFi连接成功需要一些时间（通常在30秒以内），你可以在设备指示灯变为绿色以后刷新该页面。

  • 问题：网关无法接入网络。

    解决方法：检查你的配置信息，如WiFi密码、服务器地址等。
